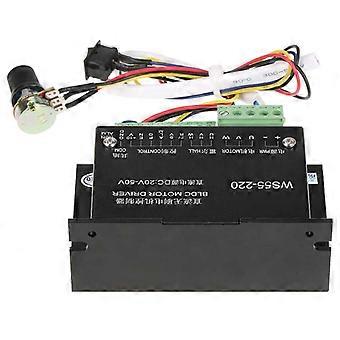

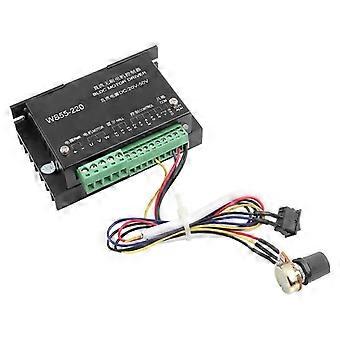

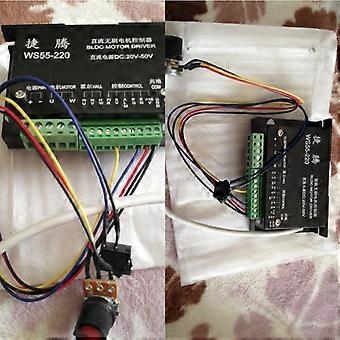

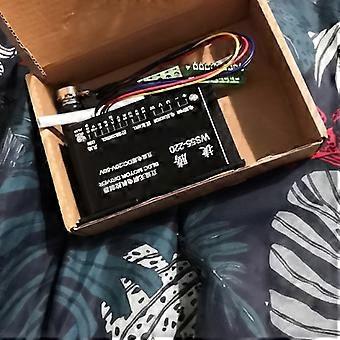

WS55-220 DC 48V 500W CNC Brushless Spindle BLDC Motor Driver Controller Features: WS55-220 is a high performance,cost-effective 3 phase BLDC motor controller.Voltage range is from 20VDC to 50VDC. The controller can drive the DLDC motor with HALL or without HALL. The driver is based on advanced technology and be provided with high speed,high ,low noise,low vibration,over current protection,overload protection,less phase line. protection,phase line short protection,alarm output,speed signal output,positive negative rotation control etc. This controller can be used in small equipment,Electric Power Tools,exhaust Fan,Jade grinding machine,Vibrating motor etc. External potentiometer control/external voltage control. With overvoltage protection,over-current protection, locked-rotor protection. Specifications: Rated voltage: 20 to 50 VDC Rated current: 12A Current limiting: 15A Maximum speed: 20000RPM( the specific speed depends on the motor itself and load) Storage temperature: -20~+65 Usage environment: Avoid direct contact with dust, fumes and corrosive gases Temperature: 0-45 Humidity: < 80%, no frost, frost free Shock: 5.9m/S2 Maximum Storage humidity: 0~95%RH Size: Approx. 9.5 x 6 x 3.5cm / 3.74 x 2.36 x 1.38inch Weight: 258g Detail: 1.Two modes of speed regulation: External potentiometer: through this potentiometer speed regulation; External voltage: external 10VDC voltage speed regulation; Note: The two speed regulation can not be used simultaneously 2. Speed output PG signal: There is a 5v pulse output between the port and the ground. The output frequency is set to P (Hz), the motor class logarithm is N, and the speed is F (RPM), then the output speed frequency is P=F*N/60. 3. Alarm output ALM signal:There is an 5V alarm pulse output between the port and the ground. 4. Positive inversion function: F/R:Fiddle the toggle switch on the corresponding side, the motor steering direction can be changed. For the toggle switch, the white part is up and down, then twang it up and down. For the toggle switch, the white part is horizontal, and the twang horizontally. 5. Start-stop (two control modes): 1. External switch EN: Transfer through switch. 2. Side toggle switch EN: for the toggle switch, the white part is up and down, then down for the start; for the toggle switch, the white part is horizontal, then dial to start Note: You can only turn one control at the same time, one of the switches is closed, and the other one is valid. 6. Locked-rotor protection:If the motor stops working, switch on the power again to start. 7. Power light: Green light: power on and off 8. Status light: Red light: two flashes in standby time, after starting, extinguish. 9. Insulation resistance: >100M at ambient temperature and atmospheric pressure 10. Insulation strength: At normal temperature and pressure, 0.5KV, 1 minutes Package included: 1 xMotor Driver Controller with cable Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. 1) We accept Alipay, West Union, TT.All major credit cards are accepted through secure payment handle ESCROW. 2) Payment must be made within 3 days of order. 3) If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days. About shipping 1. WORLDWIDE SHIPPING.(Except some countries and APO/FPO) 2. Orders processedtimely after thepayment verification. 3. We ship to confirmed order addresses. Your order address MUST MATCH your Shipping address. 4. The images shown are not the actual item and are for your reference . 5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season. 6. If you have not received your shipment within the period, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction! 7. Due to stock status and time differences, we will choose to ship your item from our available warehouse for fast delivery. 8. We seller are not in charge of inlet duty, buyer is responsible for that. Any dispute caused by this is unreasonable. 9. BR buyer please provide the cpf or cnpj, it will be better for you to get it more quickly. thanks Return and Refund 1. You have 7 days to contact us and 30 days to return it from the date it was received. If this item is in your possession more than 7 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS! 2. All returned items MUST BE in the new packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your po#. 3. We will refund YOUR FULL WINNING BID AM
