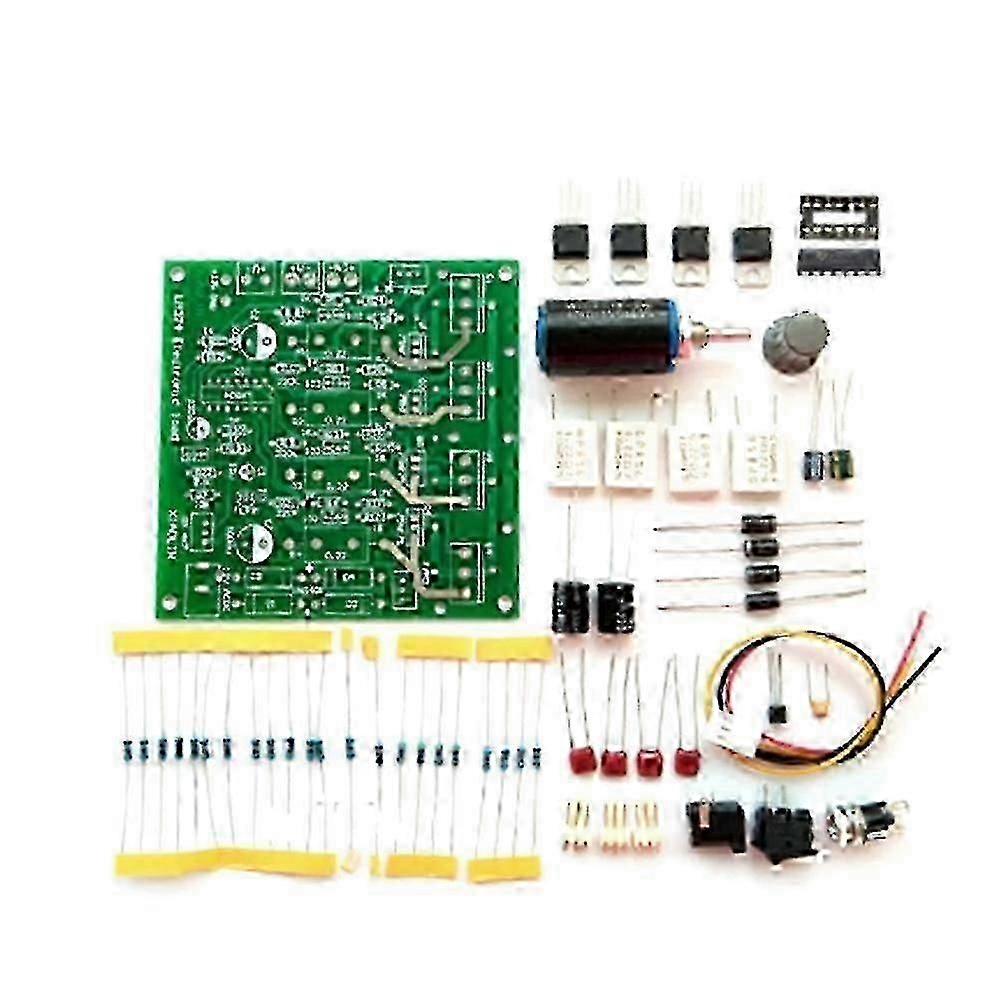

The voltage is the range of the supply voltage value and cannot be adjusted.The current is adjustable for this load test. After adjusting the desired value, test with constant current.Test the maximum discharge current of the supply, check whether the supply current is real, and use the product aging test.Remarks: How many W are all in the dissipation of the NMOS tube, and the board voltage is within 300V. You can also increase the in parallel with multiple blocks.The basic circuit form is that TL431 provides reference voltage, sense resistor, LM324 operational amplifier error amplification,Together with the MOS tube, it forms a constant current circuit. Use 4 MOS tubes with CPU heat sink.Substitution: Model 80NF70 IRF3205 HRF3250 IRF1010 IRF2807IRF1405 047an08ao, etc., also available for TO-247 high- packaging tubes such as IRF 250 260.When the board is powered by a 12V switching supply, the wire can be soldered to the right + -.Or solder the DC and use 2 wires to short-circuit the +- solder joint. The 4 rectifier tubes can be welded! ! !The heat sink cannot be connected to the negative metal of the 12V DC , and the two cannot be connected to the metal shell at the same time! !When the board is connected to the digital display meter, the supply of the meter header is connected with the small on the left end of the board: +12VNote: Do not connect the thin black wire to GND! (It will be inaccurate if the current is connected)! ! !A+-the current thick red and black wire connected to the meter head V+ is connected to the thin yellow wire voltage test of the meter head, IN is the test input terminal, and the red and black test terminal is connected to the supply under test. The FAN terminal is connected to the cooling fan.Openthe cap of the knob and tighten the screw.The tube is coated with thermal grease and screwed directly to the heat sink, and the heat sink must be connected before -on debugging! Otherwise, the tube may be burned out!Colour:As shownMaterial:PC+MetalPackage Contents:1 x battery capacity tester DIY KitsOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
