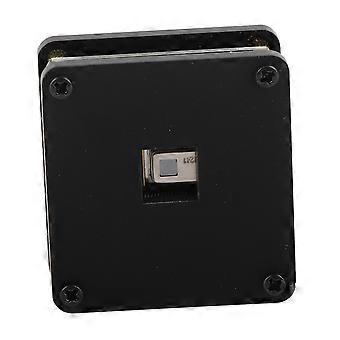

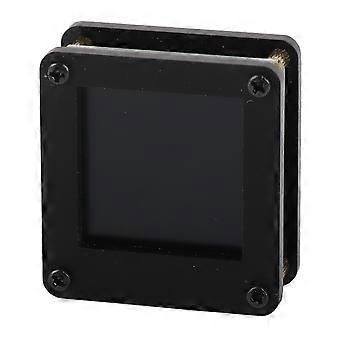

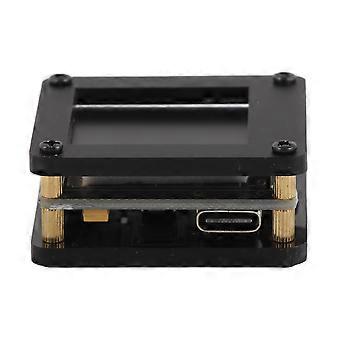

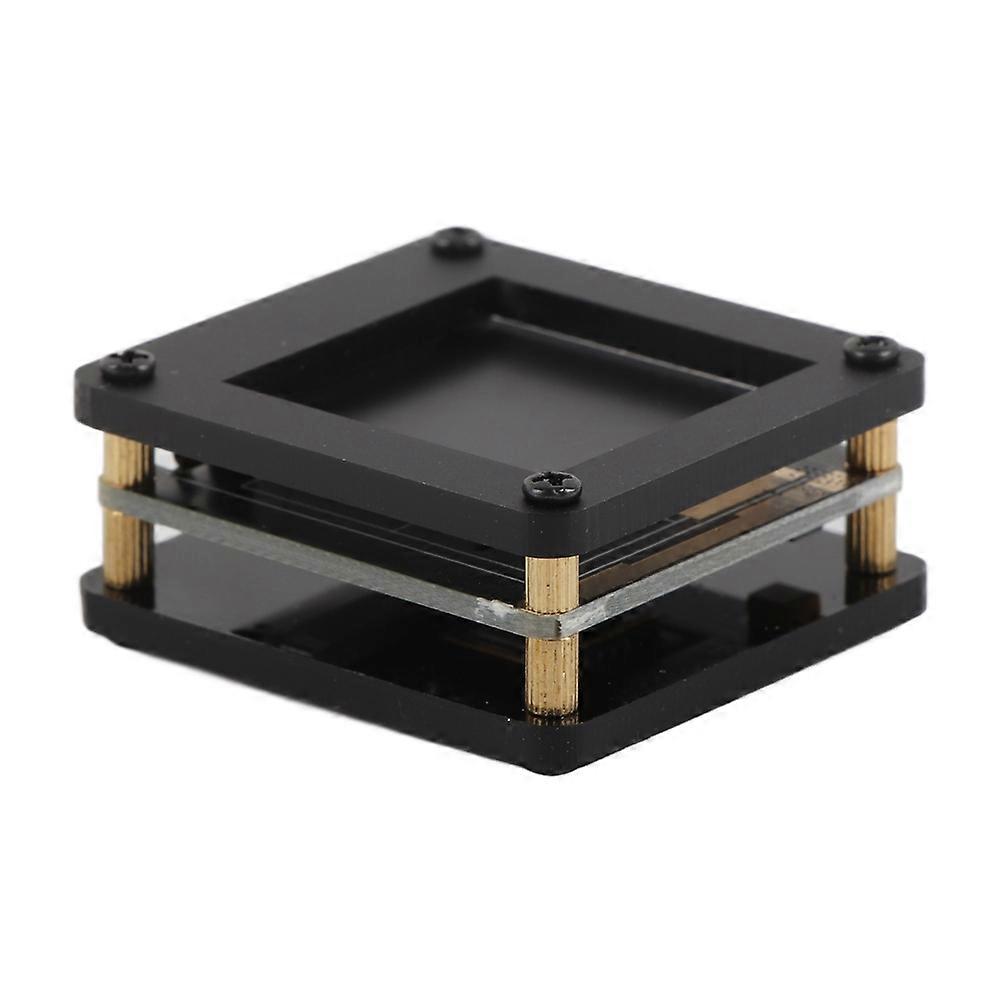

1. USB POWERED: This IR thermal imaging camera module can be directly powered by USB 5V to generate infrared images, easy to operate. 2. EXCELLENT CHIP: Using AMG8833 infrared thermal sensor, the resolution is 8x8, and the maximum human body sensing distance is 7 meters. 3. GOOD PERFORMANCE: The thermal imager has high performance and high output resolution, sensitive and reliable, with strong practicability. 4. COMPACT SIZE: The infrared temperature sensor is equipped with shells, with small and compact structure, which is easy to install and use. 5. FOR ELECTRONICS: Infrared thermal imager has a measurement temperature of 0-80°C and is widely used in testing electronic products. Item Type: Infrared Thermal Imager Temperature Accuracy: High Performance Type High Gain: Typical ±2.5℃ ±4.5℉ High Performance Type Low Gain: Typical ±3.0℃ ±5.4℉ Human Detection Distance: Approx. 7 meter / 23ft or less (reference value) Measuring Temperature: 0-80℃ Viewing Angle: Typical 60° Optical Axes Gap: Within typical ±5.6° Current Consumption: Typical 4.5mA (normal mode) Typical 0.2mA (sleep mode) Typical 0.8mA (stand by mode) Setup Time: Typical 50ms (time to enable communication after setup) Typical 15s (time to stabilize output after setup) Number of Pixel: 64 (vertical 8 x horizontal 8) External Interface: 1⊃2;C (fast mode) Frame Rate: Typical 10 frames/sec or 1 frame/sec Operating Modes: Normal, Sleep, Standby (10s or 60s flash) Output Mode: Temperature Output Calculation Method: No moving average or twice moving average Temperature Output Resolution: 0.25℃/32.45℉ Number of Sensor Addresses: 2 (1 address c slave address) Size: Approx. 38 x 36 x 17mm / 1.5 x 1.4 x 0.7in Weight: Approx. 19g / 0.7oz Note: Powered directly by USB
